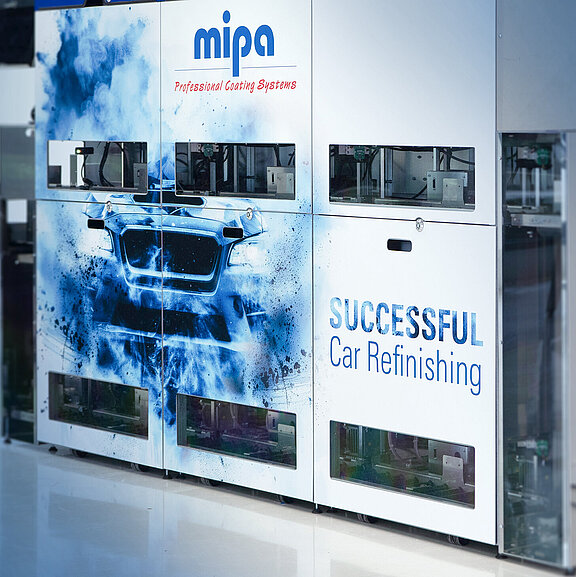

Smart Mixing

Fully and semi-automatic mixing systems

Mipa Sunrace
Mipa Abtönautomat CR 4 / CR 6
AC 100
Sunrace

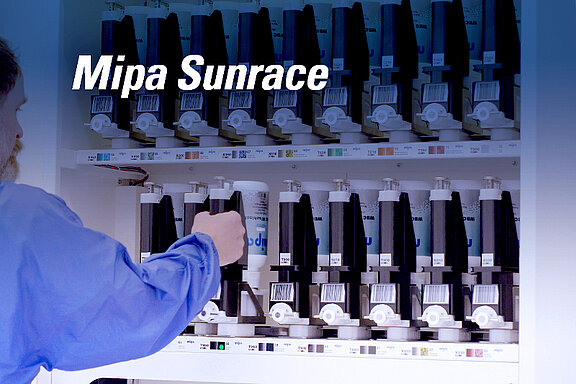

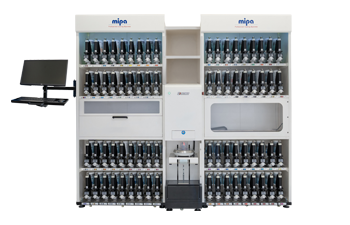

Mipa Sunrace

For WBC 72 x 1 litre / 0.5 litre containers


Efficient, user-friendly and automated WBC mixing system. Compact solution for high-precision automatic dosing of 9 toners in one mixing process. A barcode scanner can be used to precisely identify the mixed toners, effectively eliminating human error. Intelligent management of stocks, consumption statistics and recipes. Compatible with all MipaMix computers (PC/monitor not included).

Item no.: 24961 0000S 2400 x 2170 x 500 mm
Flyer

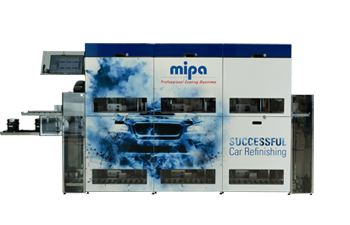

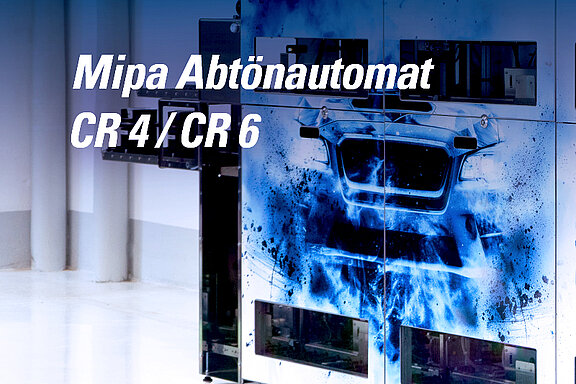

Mipa Abtönautomat CR 4 / CR 6


Fully automatic solutions for the colour mixing process for up to six mixes < 15 min at the same time. Sustainable painting process through increased process efficiency, optimised consumption and less rework thanks to improved colour accuracy. The integrated PC enables bidirectional communication in real time, so that various actions can also be carried out remotely: Accessing production statistics, checking the reserve level of all components, performing service check-ups, etc.

Item no.: 24961 0010 66 x 1.5 litres + 8 x 3 litres complete
  24961 0011 66 x 1.5 litres + 8 x 3 litres complete
  24961 0014 48 x 1.5 litres + 16 x 3 litres complete
  24961 0015 48 x 1.5 litres + 16 x 3 litres complete
  24961 0020 Mini WBC spare parts kit
  24961 0021 Spare parts kit Mini BC
Flyer

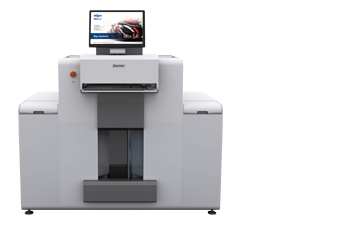

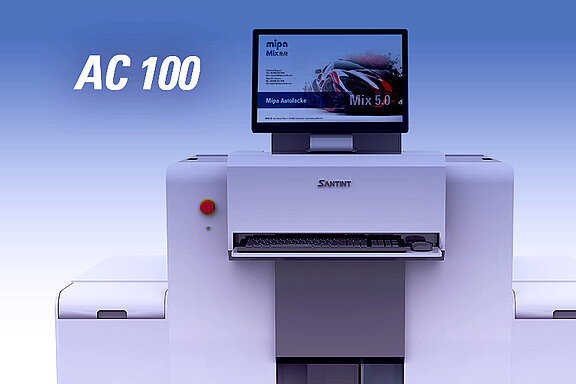

AC 100


Fully automatic tinting machine, for fast, precise and error-free dosing. Ensures seamless and efficient colour mixing for excellent results.


Technical data:

  • 3 x piston pump hummingbird dosing devices
  • Paste container: 84 x 1.25 litres (2Y pumps) + 12 x 4.3 litres (3Y pumps)
  • 3 x dosing heads (32 lines each)
  • Sequential dosing with gravimetric feedback
  • With special closure and recirculation system
  • Minimum dosing quantity: 0.015 ml
  • Incl. PC, monitor, label printer
Artikel-Nr.: 24961 0001 1396 x 1290 x 1767 mm
